CP System II
ManufacturerCapcom
Release dateSeptember 10, 1993
DiscontinuedDecember 22, 2003
CPUMotorola 68000 (@ 16 MHz)
DisplayRaster (horizontal),
384×224 resolution,
4096 colors on screen,
16,777,216-colorpalette[1]
Input8-way joystick, from 2 to 6 buttons
PlayCapcom Play System 2 Emulator Mac

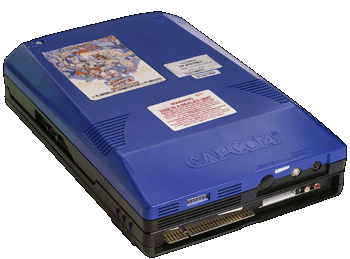

The CP System II (CPシステムII, shīpī shisutemu tsū) or CPS-2 is an arcade system board that Capcom first used in 1993 for Super Street Fighter II. It was the successor to their previous CP System and Capcom Power System Changer arcade hardware and was succeeded by the CP System III hardware in 1996, of which the CPS-2 would outlive by over four years. The arcade system had new releases for it until the end of 2003, ending with Hyper Street Fighter II.

Capcom Play System 2 Emulator Mac

History[edit]

The earlier Capcom system board, the original CP System (or CPS-1), while successful, was very vulnerable to bootleggers making unauthorized copies of the games. In order to rectify the situation, Capcom took the CP System hardware (with QSound) with minimal changes and employed encryption on the program ROMs to prevent software piracy. Due to the encryption, the system was never bootlegged until unencrypted program data became available.[citation needed]

Mac

The CP System II consists of two separate parts; the A board, which connects to the JAMMA harness and contains components common between all CP System II games, and the B board, which contains the game itself. The relationship between the A and B board is very similar to that between a home video game console and cartridge. CP System II A and B boards are color-coded by region, and each board can only be used with its same-colored mate. The exception to this is that the blue and green boards can be used together.[citation needed]

The B boards hold battery-backed memory containing decryption keys needed for the games to run. As time passes, these batteries lose their charge and the games stop functioning, because the CPU cannot execute any code without the decryption keys. This is generally referred to as a 'suicide battery'. It is possible to bypass the original battery and swap it out with a new one[2] in-circuit, but this must be done before the original falls below 2V or the keys will be lost. Consequently the board would die, even if used legally it would not play after a finite amount of time unless a fee was paid to Capcom to replace it.

Due to the heavy encryption, it was believed for a long time that CP System II emulation was next to impossible. However, in January 2001, the CPS-2 Shock group[3] was able to obtain unencrypted program data by hacking into the hardware, which they distributed as XOR difference tables to produce the unencrypted data from the original ROM images, making emulation possible, as well as restoring cartridges that had been erased because of the suicide system.

In January 2007, the encryption method was fully reverse-engineered by Andreas Naive[4] and Nicola Salmoria. It has been determined that the encryption employs two four-round Feistel ciphers with a 64-bit key.[5][6] The algorithm was thereafter implemented in this state for all known CPS-2 games in MAME.

In April 2016, Eduardo Cruz, Artemio Urbina and Ian Court announced the successful reverse engineering of Capcom's CP System 2 security programming, enabling the clean 'de-suicide' and restoration of any dead games without hardware modifications.[7][8]

Region colors[edit]

RegionCaseVersion screen
JapanGreen plasticWhite text
U.S.A.Blue plasticRed text
Euro/Etc./WorldBlue plasticBlue text
AsiaGrey plasticYellow text
HispanicOrange plasticGreen text
BrazilOrange plasticMagenta text
OceaniaBlue plasticOrange text
Rental (any of above)Yellow plastic(Any of above)
(Any of above)Black metal 'all-in-one'(Any of above)

Technical specifications[edit]

Capcom Play System 2 Emulator

  • CPU:[9]
    • Primary: Capcom DL-1525 (encrypted68000) @ 16 MHz
    • Sound: Kabuki DL-030P (encrypted Z80, but encryption not used) or standard Z80 @ 8 MHz
  • Capcom custom chipset:[9]
    • GPU: CPS-A & CPS-B Graphics Processors @ 16 MHz (same as CPS-1)
    • Sound chip: Lucent DL-1425 Q1 QSound DSP16A Processor @ 4 MHz
    • DRAM Refresh Controller: DL-2227
    • I/O Controller: DL-1123
  • Display:
    • Active resolution: 384×224 pixels[1]
    • Overscan resolution: 512×262 (262 scanlines)[10]
    • Sprites: 900 on screen[1]
  • Colors:
    • Depth: 32-bit[1] (RGBA)
    • Palette: 16,777,216 colors (24-bit)
    • Alpha transparency: 256 levels (8-bit)
    • Colors on screen: 4096[1] (12-bit)
    • Colors per tile: 16 (4-bit)[1]
  • RAM: 1328 KB (1 MBFPM DRAM, 304 KB SRAM)
    • A-Board: 1 MB FPM DRAM,[9][11] 280 KB SRAM (256 KB video, 16 KB I/O, 8 KB sound)[9]
    • B-Board: 16 KB SRAM (2× 8 KB)[9]
    • Communication Board: 8 KB SRAM[9]
  • Maximum ROM capacity: 322 Mbit[1] (40.25 MB)
  • Dimensions (A+B board pair): 40 x 27 x 8 cm

List of games (42 games)[edit]

Capcom Play System 2 Emulator Mac Os

English titleRelease dateDeveloperJapanese titleGenre
Super Street Fighter II: The New Challengers
Super Street Fighter II: Tournament Battle
1993-09-10CapcomSuper Street Fighter II
(スーパーストリートファイターII)
Head-to-Head Fighting Game
Eco Fighters1993-12-03CapcomUltimate Ecology
(アルティミットエコロジー)
Shoot 'em up
Dungeons & Dragons: Tower of Doom1994-01-13CapcomDungeons & Dragons: Tower of Doom
(ダンジョンズ&ドラゴンズ タワーオブドゥーム)
Beat 'em up
Super Street Fighter II Turbo1994-02-23CapcomSuper Street Fighter II X: Grand Master Challenge
(スーパーストリートファイターIIX)
Head-to-Head Fighting Game
Alien vs. Predator1994-05-20CapcomAlien VS Predator
(エイリアンVSプレデター)
Beat 'em up
Darkstalkers: The Night Warriors1994-07-05CapcomVampire: The Night Warriors
(ヴァンパイア -The Night Warriors-)
Head-to-Head Fighting Game
Ring of Destruction: Slammasters II1994-08-08CapcomSuper Muscle Bomber: The International Blowout
(スーパーマッスルボマー -THE INTERNATIONAL BLOWOUT-)
Head-to-Head Fighting Game
Armored Warriors1994-09-16CapcomPowered Gear: Strategic Variant Armor Equipment
(パワードギア -STRATEGIC VARIANT ARMOR EQUIPMENT-)
Beat 'em up
X-Men: Children of the Atom1994-12-08CapcomX-Men: Children of the Atom
((X-MEN Children of The Atom))
Head-to-Head Fighting Game
Night Warriors: Darkstalkers' Revenge1995-03-02CapcomVampire Hunter: Darkstalkers' Revenge
(ヴァンパイアハンター -Darkstalkers' Revenge-)
Head-to-Head Fighting Game
Cyberbots: Full Metal Madness1995-04-20CapcomCyberbots: Full Metal Madness
(サイバーボッツ -FULL METAL MADNESS-)
Head-to-Head Fighting Game
Street Fighter Alpha1995-06-05CapcomStreet Fighter Zero
(ストリートファイターZERO)
Head-to-Head Fighting Game
Mega Man: The Power Battle1995-09-22CapcomRockman: The Power Battle
(ロックマン ザ・パワーバトル)
Platformer
Marvel Super Heroes1995-10-24CapcomMarvel Super HeroesHead-to-Head Fighting Game
19XX: The War Against Destiny1995-12-07Capcom19XX The War Against DestinyShoot 'em up
Dungeons & Dragons: Shadow over Mystara1996-02-06CapcomDungeons & Dragons: Shadow over Mystara
(ダンジョンズ&ドラゴンズ シャドーオーバーミスタラ)
Beat 'em up
Street Fighter Alpha 21996-02-27CapcomStreet Fighter Zero 2
(ストリートファイターZERO2)
Head-to-Head Fighting Game
Super Puzzle Fighter II Turbo1996-05-29CapcomSuper Puzzle Fighter II X
(スーパーパズルファイターIIX)
Puzzle game
Mega Man 2: The Power Fighters1996-07-08CapcomRockman 2: The Power Fighters
(ロックマン2 ザ・パワーファイターズ)
Platformer
Street Fighter Alpha 2 Gold1996-08-05CapcomStreet Fighter Zero 2 Alpha
(ストリートファイターZERO2 ALPHA)
Head-to-Head Fighting Game
Quiz Nanairo Dreams: Nijiirochō no Kiseki1996-08-26CapcomQuiz Nanairo Dreams: Nijiirochō no Kiseki
(クイズなないろDREAMS 虹色町の奇跡)
Quiz game
X-Men vs. Street Fighter1996-09-09CapcomX-Men vs. Street FighterHead-to-Head Fighting Game
Battle Circuit1997-03-19CapcomBattle Circuit
(バトルサーキット)
Beat 'em up
Darkstalkers 31997-05-19CapcomVampire Savior: The Lord of Vampire
(ヴァンパイアセイヴァー -The Lord of Vampire-)
Head-to-Head Fighting Game
Marvel Super Heroes vs. Street Fighter1997-06-20CapcomMarvel Super Heroes vs. Street FighterHead-to-Head Fighting Game
Capcom Sports Club1997-07-22CapcomCapcom Sports Club
(カプコンスポーツクラブ)
Sports game
Super Gem Fighter Mini Mix1997-09-04CapcomPocket Fighter
(ポケットファイター)
Head-to-Head Fighting Game
Vampire Hunter 2: Darkstalkers' Revenge1997-09-13CapcomVampire Hunter 2: Darkstalkers' Revenge
(ヴァンパイアハンター2 -Darkstalkers' Revenge-)
Head-to-Head Fighting Game
Vampire Savior 2: The Lord of Vampire1997-09-13CapcomVampire Savior 2: The Lord of Vampire
(ヴァンパイアセイヴァー2 -The Lord of Vampire-)
Head-to-Head Fighting Game
Marvel vs. Capcom: Clash of Super Heroes1998-01-12CapcomMarvel vs. Capcom: Clash of Super HeroesHead-to-Head Fighting Game
Street Fighter Alpha 31998-06-29CapcomStreet Fighter Zero 3
(ストリートファイターZERO3)
Head-to-Head Fighting Game
Giga Wing1999-02-22TakumiGiga Wing
(ギガウイング)
Shoot 'em up
Jyangokushi: Haō no Saihai1999-05-27CapcomJyangokushi: Haō no Saihai
(雀國志 覇王の采牌)
Puzzle game
Dimahoo2000-01-21Eighting/RaizingGreat Mahō Daisakusen
(グレート魔法大作戦)
Shoot 'em up
Mars Matrix: Hyper Solid Shooting2000-04-12TakumiMars Matrix
(マーズマトリックス)
Shoot 'em up
1944: The Loop Master2000-06-20Eighting/Raizing1944 The Loop MasterShoot 'em up
Mighty! Pang2000-10-10MitchellMighty Pang
(マイティ・パン)
Platformer
Progear2001-01-17CaveProgear no Arashi
(プロギアの嵐)
Shoot 'em up
Puzz Loop 22001-02-05MitchellPuzz Loop 2
(パズループ2)
Puzzle game
Janpai Puzzle Chōkō2001-08-20MitchellJanpai Puzzle Chōkō
(雀牌パズル 長江)
Puzzle game
Hyper Street Fighter II: The Anniversary Edition2003-12-22CapcomHyper Street Fighter II
(ハイパーストリートファイターII)
Head-to-Head Fighting Game

See also[edit]

References[edit]

  1. ^ abcdefg'System 16 - CP System II (CPS2) Hardware (Capcom)'.
  2. ^'CPS-2 Shock'.
  3. ^'CPS-2 Shock'.
  4. ^'Notas de Andy'.
  5. ^MAME source - cps2crypt.cpp
  6. ^Salmoria, Nicola (14 January 2007). 'Nicola's MAME Ramblings: CPS2 Getting Closer'.
  7. ^Cruz, Eduardo (30 April 2016). 'Arcade Hacker: Important Capcom CPS2 Announcement'.
  8. ^'CPS2 Board Security Successfully Reverse Engineered; Allows Dead Arcade Boards to be Easily Resurrected'. 10 May 2016.
  9. ^ abcdef'Archived copy'. Archived from the original on 2015-11-05. Retrieved 2014-11-22.CS1 maint: archived copy as title (link)
  10. ^'mamedev/mame'.
  11. ^'HM514260AJ-8 - HM514260AJ8 - Quest Components, Inc. - Electronic Component Distributors - Resistor & Capacitor Distributors - Obsolete Electronic Components - Discrete Semiconductor Distributors - Integrated Circuit Distributors - Quest Components'.

External links[edit]

  • CPS-2 Keystone Suicide Battery Retainer Mod - JAMMAPARTS.COMArchived 2011-07-19 at the Wayback Machine
